Interloc Rigid MFH Holders have a 4.000” bolt down circle & a 5.062” flange diameter that bolts down to your machine spindle head which gives you the benefit of being more rigid than conventional CAT40 or CAT50 holders.  MFH holders are part of the “Interloc System” which allows you to combine and interchange a wide range of tooling solutions the modular Interloc connection system.  Once mounted use the modular Interloc system to create your desired length and cutter type needed for machining you job. Custom sizes and lengths available on request.

Interloc Rigid System (Modular Flange Mount System)



The Interloc Rigid System is designed for very long reach tooling to utilize maximum strength and rigidity when machining steel, aluminum, or other exotic materials.  With a triple contact on the machine spindle the Interloc Rigid System helps reduce the amount of wear on the machine spindle and strengthens your tooling. This triple contact also increases tooling life, feed rates, and depth of cut when machining. The Interloc Rigid System is also modular and allows you to interchange with various Interloc extensions, adapters, reducers, and cutters.

Standard Flange Mount Holders

NO TRIPLE CONTACT

(FACE & SIDE)

LESS RIGID

Interloc Rigid Flange Mount Holders

100% TRIPLE CONTACT

WITH SPINDLE TAPER, FACE, & SIDE

(EXTREMELY RIGID)

NO MODULAR

CONNECTION

INTERLOC MODULAR

CONNECTION

Interloc Rigid Benefits:



  • Triple Contact On Spindle Taper, Face, & Side

  • 50% Feed Rate Increases or More

  • Increase Depth of Cut

  • Extremely Rigid & Stable

  • Decrease Vibration & Chattering

  • Increase Tooling Life & Accuracy

Extremely Rigid:

Interloc Rigid Can Extend Over 30 Inches if needed



4.000" BOLT DOWN CIRCLE

5.062" FLANGE DIAMETER

STANDARD INTERLOC RIGID HOLDER SIZE

CUSTOM FLANGE, BOLT CIRCLE, & LENGTHS AVAILABLE ON REQUEST

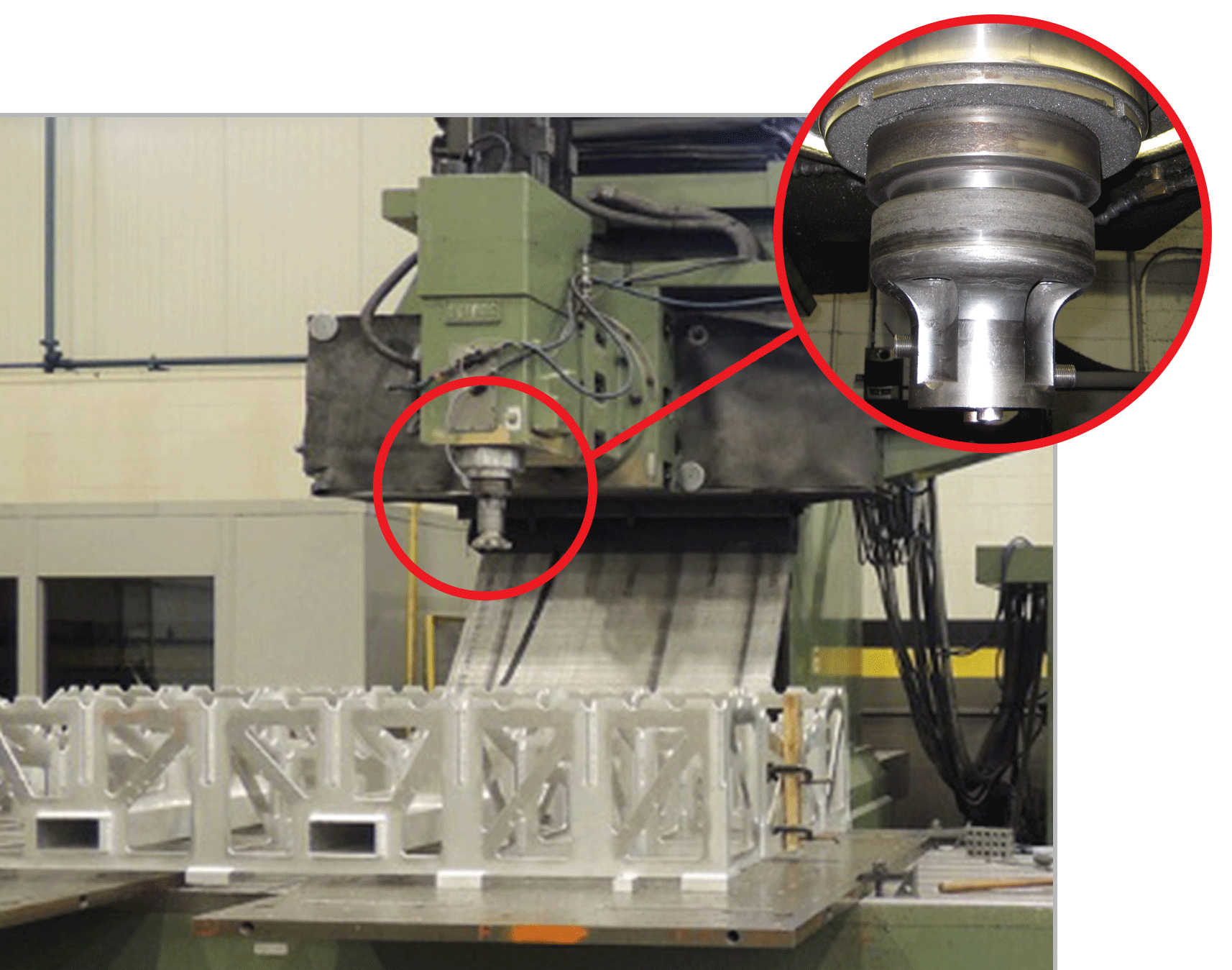

BOLTS RIGHT ONTO MACHINE SPINDLE

WILL BOLT ONTO MAJORITY OF SPINDLES

Interloc Rigid Holders



  • Various Sizes & Lengths Available

  • Connects With A Wide Range of Interloc Extensions, Adapters, & Cutters

  • Plugs Avilable in CAT50 or CAT50-NMTB

  • Custom Requests Available

Interloc Rigid Products:
