Interloc ER Collet Extensions Drive System



Troy Industries powerful quick-change modular tooling products allows the user to combine and interchange various lengths & cutter heads with one another.  The modular design of the “Interloc Drive System” gives you many benefits:



● Build & create your unique custom tools with standard stock items

● A wide range of cutterheads, extensions, adapters, & holders available

● Create numerous long and short tooling lengths

● Infinite amount of modular tooling combinations

Interloc ER Collet Extension

Collet nut drives down the top and bottom taper of the

Inlerloc collet extension and securely locking

and making the extension concentric.

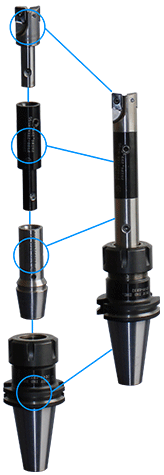

How The Interloc Collet Extension Works

Allows you to use your existing collet holders

with the Modular Inderloc Tooling System

Interloc
End Mill
Holder

Interloc
ER Collet
Extension

Taper

Collet
Nut

Split view of Collet Holder

Indexable
Cutterhead

Interloc
Extension

Interloc
ER Collet
Extension

Collet
Holder
